LED Multi-purpose Luminaire
- Product No.：20201213173831

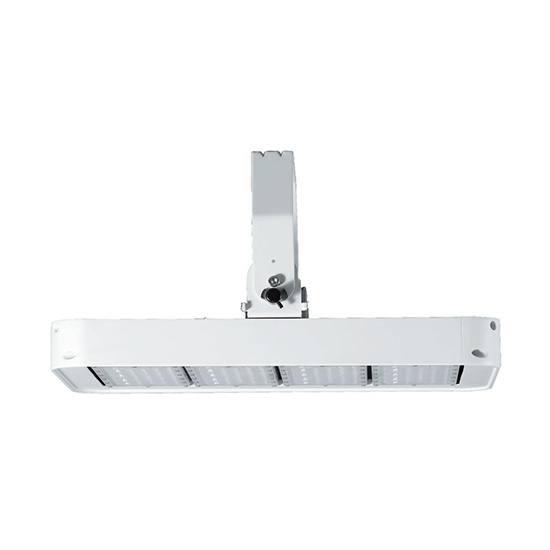

LED Multi-purpose Luminaire for high bay , low bay , flood lighting
Product Features
Modular design, 77 pcs 1.2W LEDs per module with total input power from 50-70W.
Product Features
Modular design, 77 pcs 1.2W LEDs per module with total input power from 50-70W.
1.5mm MCPCB, thermal paste with conductivity of 2.0 from Dow Corning.
Extruded heat sink, made of 6063 aluminum with 99.99% purity.
Die-cast aluminum endcap and extruded frame, polyester powder painted fifinish,
corrosion resistant.
Lens material: UV-stabilized polycarbonate (PC) from Bayer.
Sealing gasket made with mateirals from Dow Corning, maintaining high
performance between -60°C-180°C.
Beam angles: 25°, 40° asymmetrical, 40°, 80°, 120°, 30x70°, 70x140°.
Aiming angles can be adjusted with an increment of 15°.
IP66 and IK08 rated.
Certififications: TUV, CB, ETL, SAA etc
5-year warranty offers complete peace of mind
